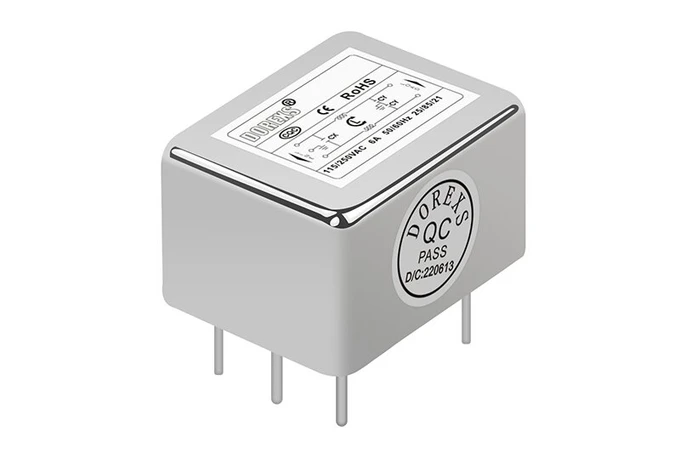

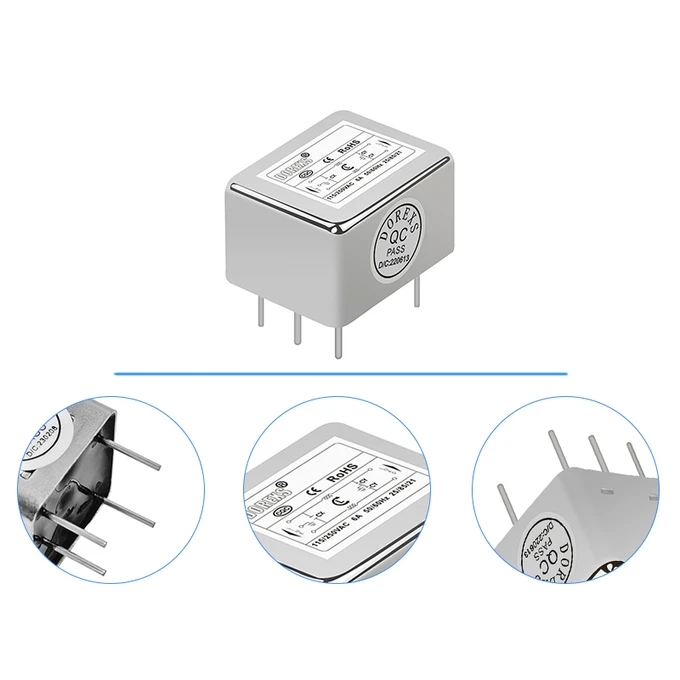

PRODUCT NAME
DAP2 1A 3A 6A 10A PCB mounting single phase EMI EMC power filter emi filters pcb mount noise filter for amplifier
PRODUCT INTRODUCTION
The DAP2 series EMI power line noise filter adopts a pin interface design, with a rated current of 1A -10A. It is characterized by small size and easy installation, designed specifically for PCB board assembly, customizable, strong anti-interference ability, stable performance, and wide range of applications
PRODUCT FEATURES
Single-phase AC 220V EMI filter/noise filter (DC universal)
Rated current: 1A---10A
PIN pin interface design
EMI filter has a good suppression effect on common mode and differential mode interference
ELECTRICAL CHARACTERISTICS
| Product name | Single Phase Universal PCB Board EMI filter |
| Rated voltage | 115/250VAC |
| Line Frequency | 50/60Hz |
| Test Voltage | 1500VDC (line/line) |
| 2150VAC (line/ground) |
| Insulation Resistance | |
| Climatic category | 25/085/21 |
PRODUCT MODEL
| model | Rated current | leakage current | Shell model | Connection method | safety certificate | Remark |
| Access | output |
| DAP2-1A | 1A | <0.8mA | P2 | Pin | Pin | CUL,CQC
CE,ROHS | Parameters support
customization |
| DAP2-3A | 3A | <0.8mA | P2 | Pin | Pin |
| DAP2-6A | 6A | <0.8mA | P2 | Pin | Pin |
| DAP2-10A | 10A | <0.8mA | P2 | Pin | Pin |

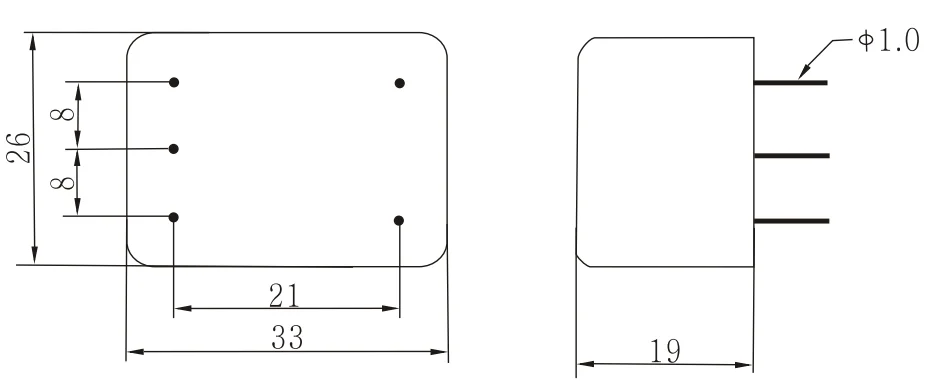

PRODUCT SIZE
INSERTION LOSS
————(Common Mode)----------(Differential Mode)
DAP2-1A DAP2-3A
DAP2-6A DAP2-10A

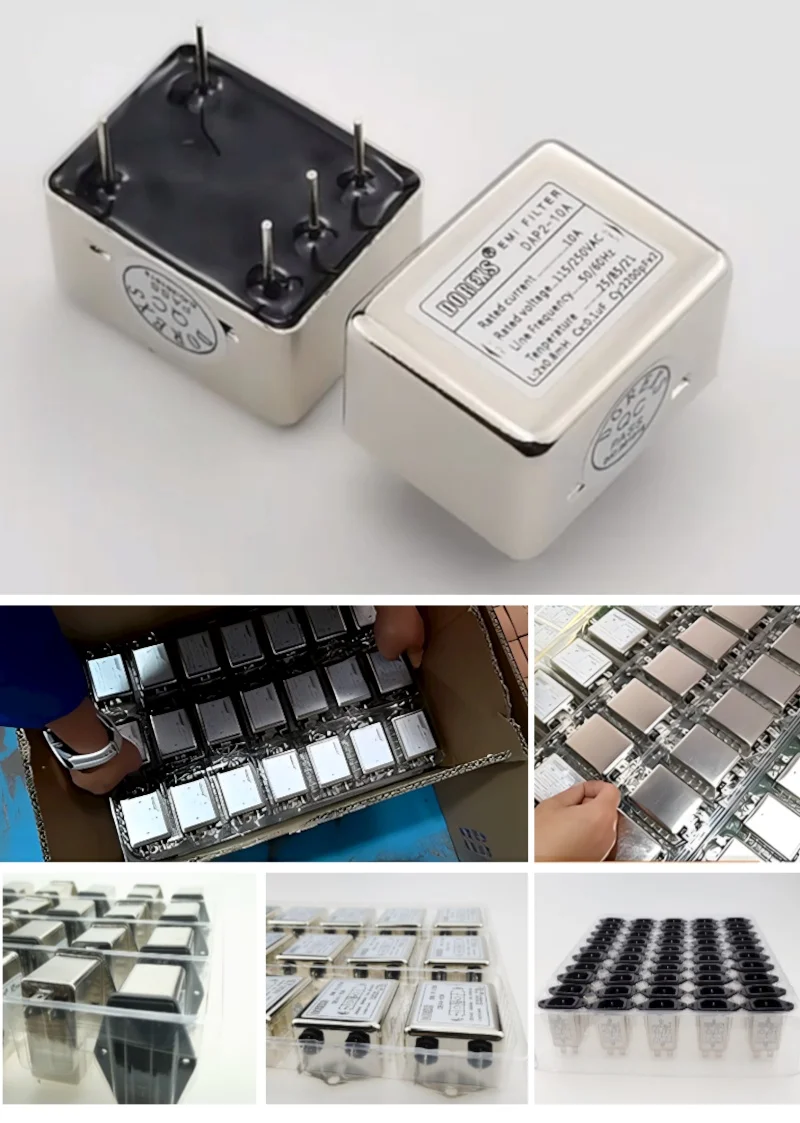

PRODUCTION PACKAGING
APPLICATION AREA
Application fields: electronic and electrical equipment, medical equipment, single-phase power supply, switch mode power supply, small and medium-sized machines, and household equipment

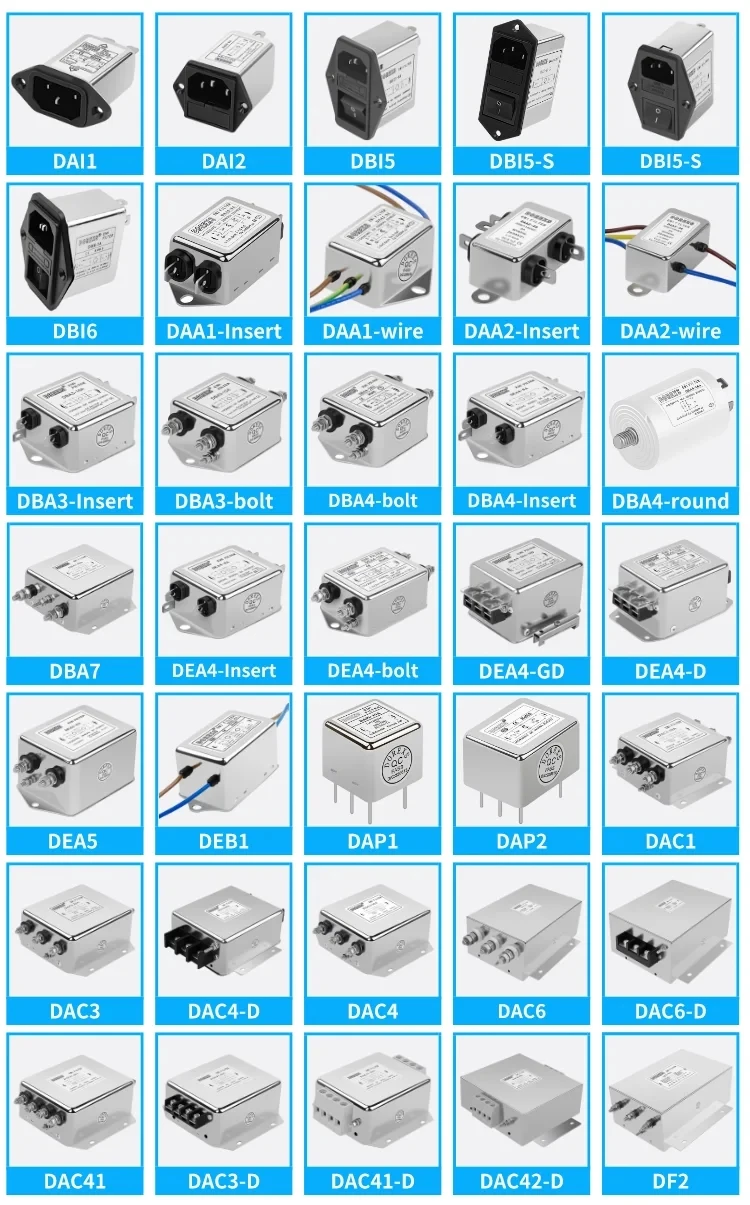

PRODUCT CATALOG
